Model Whirlpool 2214^1A ELECTRIC RANGE – Common Parts & Diagrams
02 - BACKGUARD

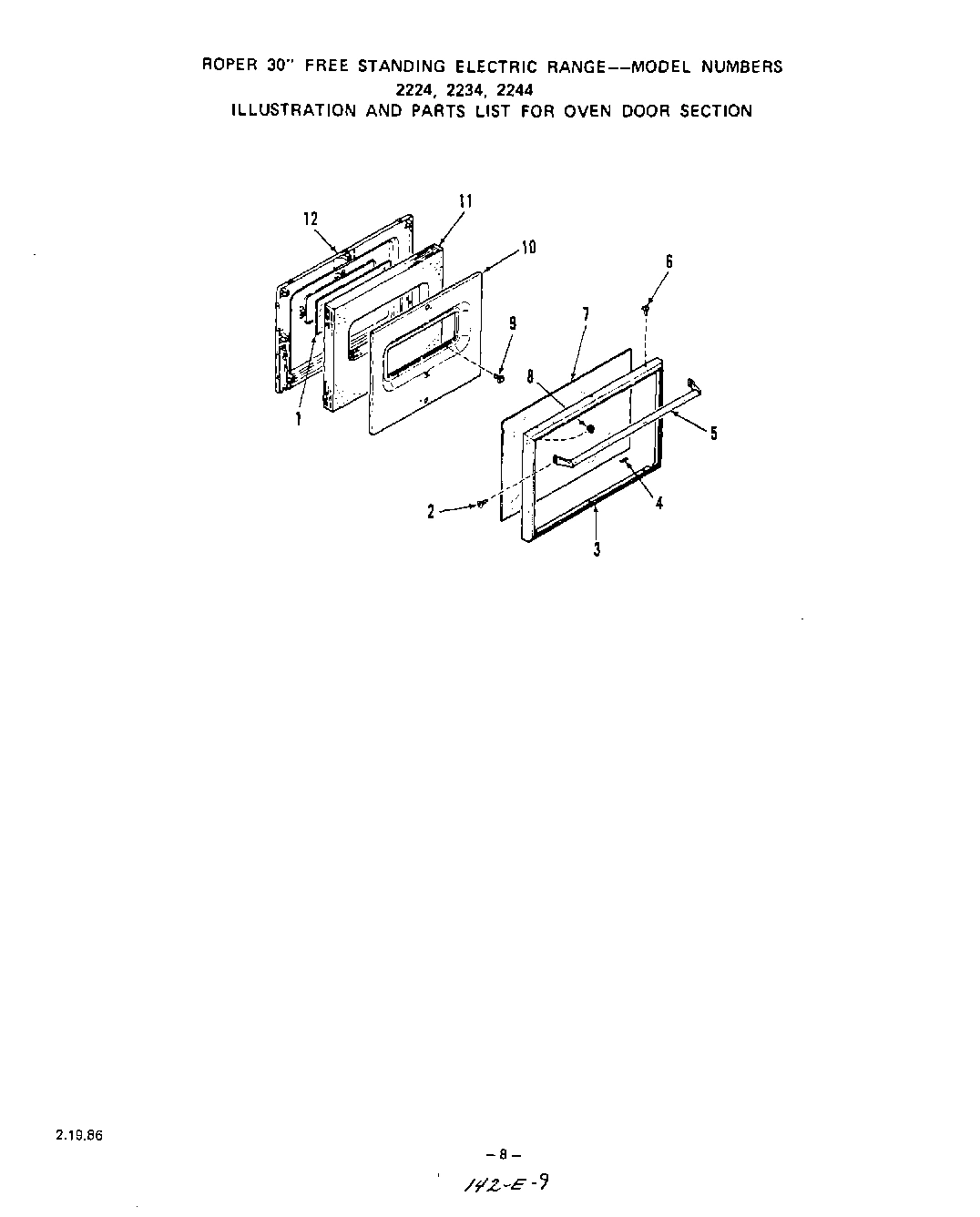

06 - OVEN DOOR
07 - SECTION

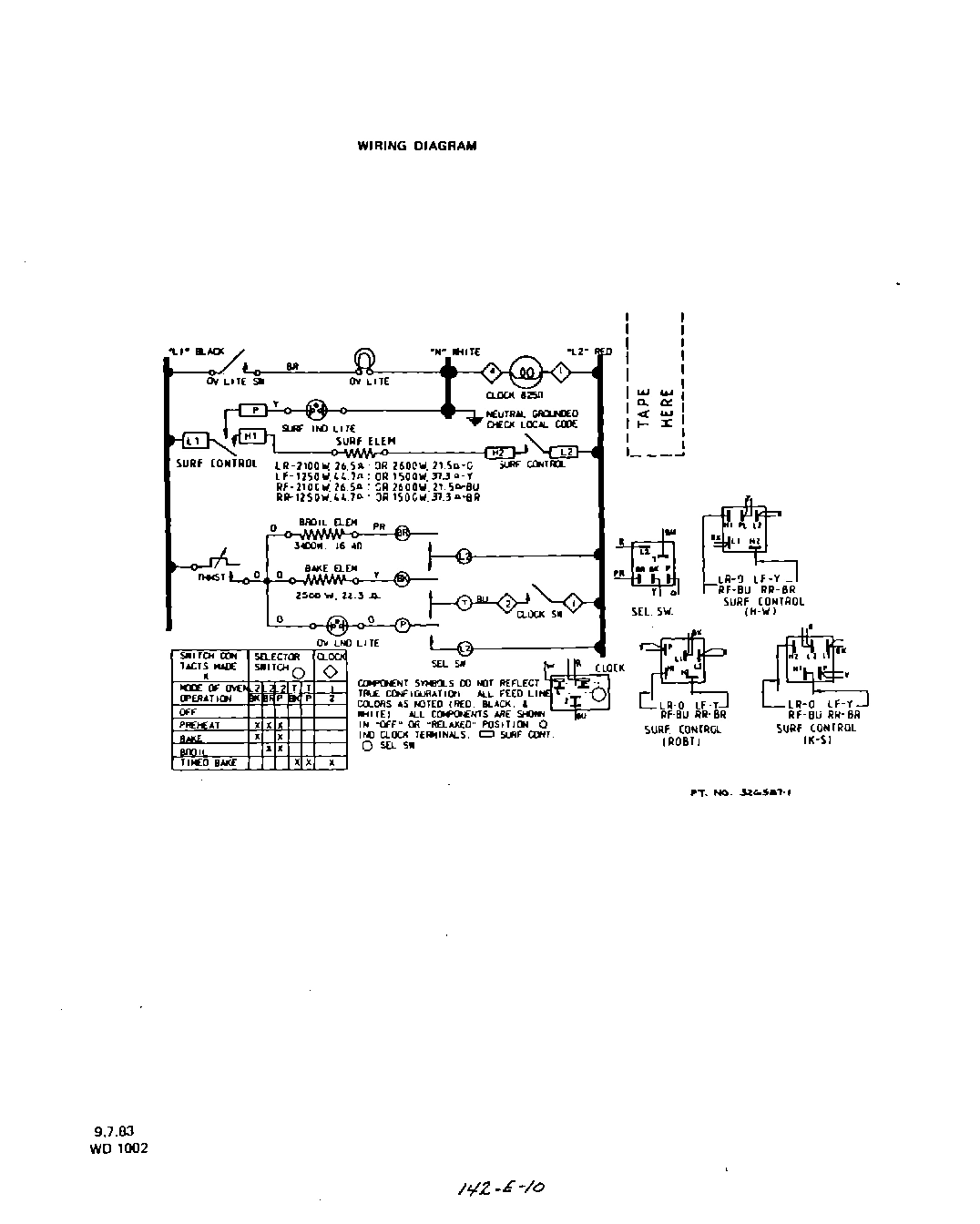

08 - WIRING DIAGRAM
09 - SECTION

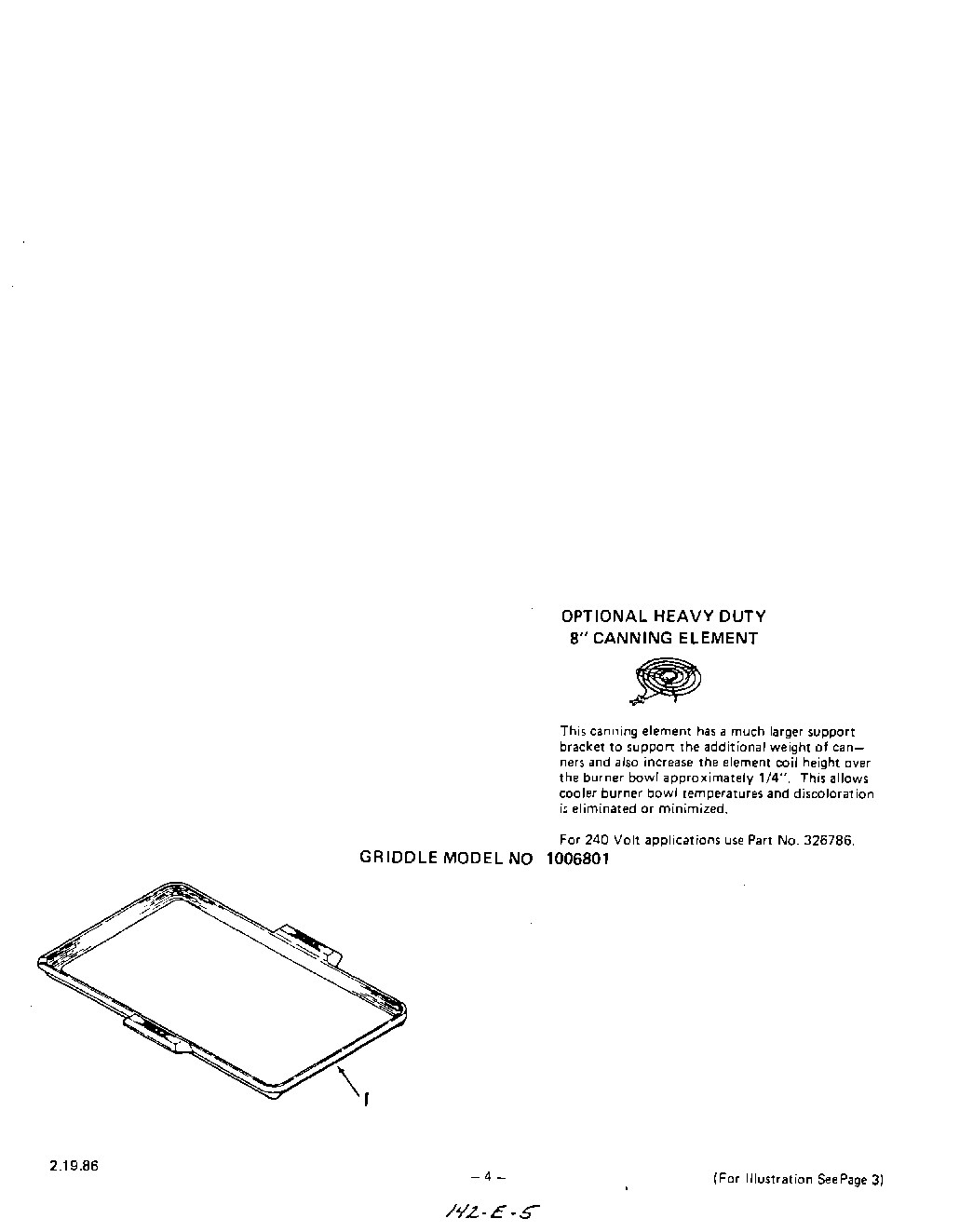

04 - CANNING ELEMENT , GRIDDLE

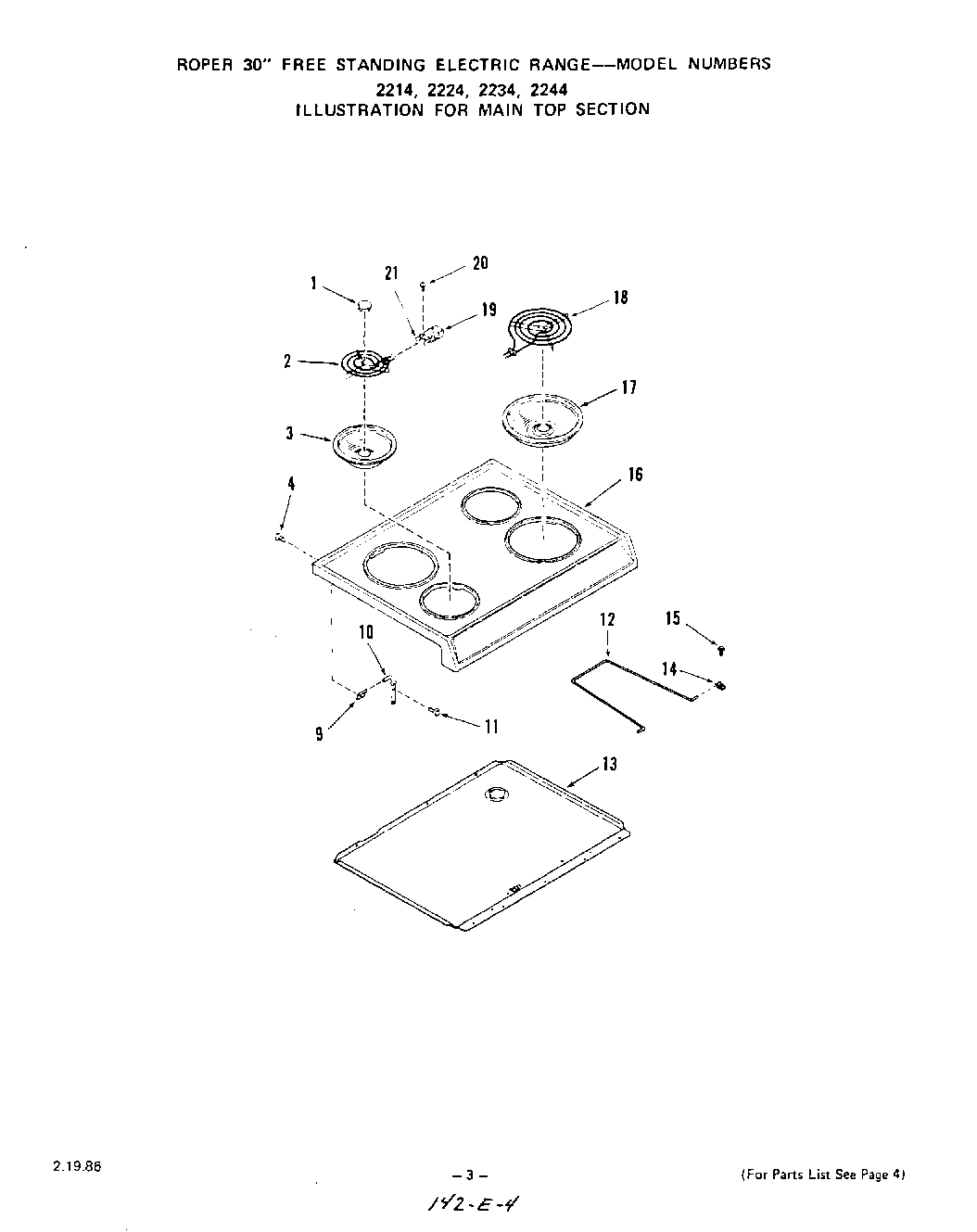

03 - MAIN TOP

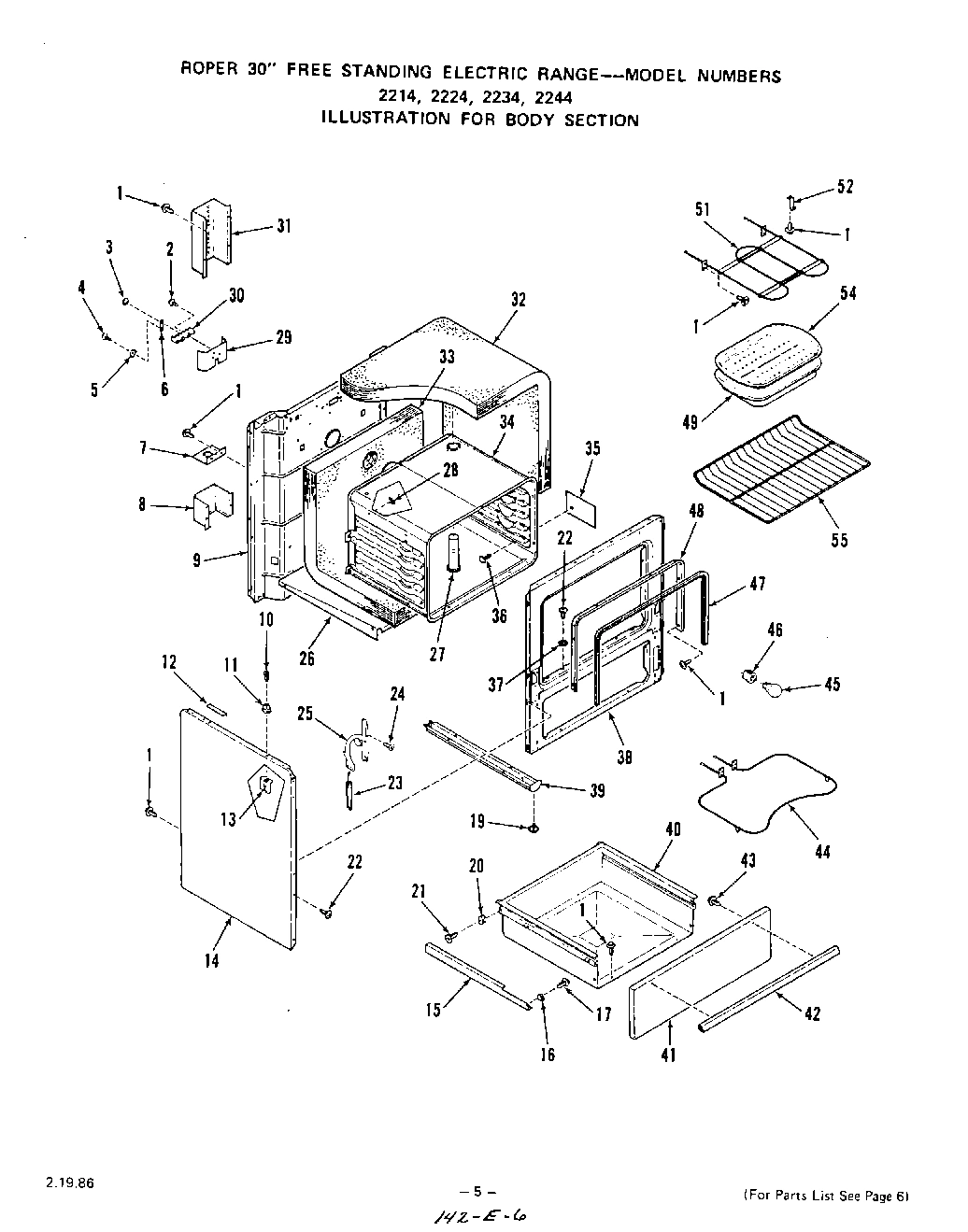

05 - BODY
Common parts from model Whirlpool 2214^1A ELECTRIC RANGE
xInstallation Guide WPL 333208 Contact Us For Availability
xRepair Parts List WPL 333718 Contact Us For Availability
xWire Harness WPL ARI9684A71 Contact Us For Availability
Controls WPL ARI9685A39 Contact Us For Availability
Thermostat WPL ARI9686A83 Contact Us For Availability
xOperating Guide WPL ARI9687A15 Contact Us For Availability
1
Push Switch-Oven Light WPL 298794 Contact Us For Availability
1
inner glass-oven door WPL 326010 Contact Us For Availability
1
Set-On Griddle WPL 309844 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
2
All 2224 & 2244 Models WPL 322307 Contact Us For Availability
2
Clock w/1 Hr. Timer WPL ARI9658A73 Contact Us For Availability
2
Spacer WPL 327269 Contact Us For Availability
2
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
2
All 2214 & 2234 Models WPL 325507 Contact Us For Availability
2
All 2224 & 2244 Models WPL 325510 Contact Us For Availability
2
6`` Surface Element-Lt. Front & Rt. Rear WPL ARI9667A81 Contact Us For Availability
2
Screw 10-32x1`` WPL 313190 Contact Us For Availability
3
Lt. Frt., Rt.Rr. All 22141A, 2A, 2234 WPL 320945 Contact Us For Availability
3
Rt. Frt., Lt. Rt. All 22141A, 2A, 2234 WPL 320946 Contact Us For Availability
3
Lt. Frt., Rt. Rr. All 2224, 2244, 1A & 2A WPL 324608 Contact Us For Availability
3
Rt. Frt., Lt. Rr. All 2224, 2244, 1A & 2A WPL 324609 Contact Us For Availability
3
Infinite Control WPL ARI9659A28 Contact Us For Availability
3
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
3
frame-oven door WPL 326002 Contact Us For Availability
3
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
3
Hex Nut 10-32 WPL 97816 Contact Us For Availability
4
Selector Switch WPL 320942 Contact Us For Availability
4
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
4
Retainer-Door Glass (2 Req) WPL 299592 Contact Us For Availability
4
Cushion (5 Req) WPL 112370 Contact Us For Availability
4
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
5
Screw 8-32x3/16`` (2 Ea. For 3,4,7 & 11) WPL 78565 Contact Us For Availability
5
White WPL 325968 Contact Us For Availability
5
Golden Wheat WPL 325969 Contact Us For Availability
5
Almond WPL 325970 Contact Us For Availability
5
Avocado WPL 325971 Contact Us For Availability
5
Coffee WPL 325972 Contact Us For Availability
5
Front Panel-Oven Door WPL ARI9680A65 Contact Us For Availability
5
Handle WPL 303342 Contact Us For Availability
5
Washer WPL 299425 Contact Us For Availability
6
1 Req. Minute Timer WPL 294810 Contact Us For Availability
6
Knob-Clock WPL ARI9660A19 Contact Us For Availability
6
Ground Strap WPL 327255 Contact Us For Availability
7
Infinite Control (4 Req) All 22140A, 22240A 2 WPL 320944 Contact Us For Availability
7
Spacer-Door Handle WPL 302343 Contact Us For Availability
7
outer glass-oven door WPL 326367 Contact Us For Availability
7
Range Service Mounting Plate WPL 327259 Contact Us For Availability
8
Nut-Trim 3/8-27 WPL 109883 Contact Us For Availability
8
Keps Nut 8-32 WPL 239764 Contact Us For Availability
8
Wire Shield-Lower WPL 327258 Contact Us For Availability
9
Pal Nut (2 Req) WPL 236129 Contact Us For Availability
9
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
9
Bracket-Main Top Hinge (Lt. or Rt.) WPL 320931 Contact Us For Availability
9
Main Back WPL 325879 Contact Us For Availability
10
Indicator Light (Surface) WPL 323228 Contact Us For Availability
10
All Except 22142A Models WPL 326090 Contact Us For Availability
10
All 22142A Models WPL 326583 Contact Us For Availability
10
Outer Glass-Oven Door WPL ARI9681A45 Contact Us For Availability
10
Insulation Retainer-Oven Door WPL 325996 Contact Us For Availability
10
Right WPL 320921 Contact Us For Availability
10
Left WPL 320922 Contact Us For Availability
10
Hinge-Main Top WPL ARI9668A85 Contact Us For Availability
10
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
11
2214, 2224, 2234, 2244 0A & 1A Models WPL 320937 Contact Us For Availability
11
2214, 2234, 2244 2A Models WPL 321958 Contact Us For Availability
11
Thermostat WPL ARI9661A77 Contact Us For Availability
11
Insulation WPL 325999 Contact Us For Availability
11
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
11
Strike-Main Top (Lt. or Rt.) WPL 326513 Contact Us For Availability
12
Indicator Light-Oven WPL 326871 Contact Us For Availability
12
All 2234, 2244 Models WPL 325946 Contact Us For Availability
12
All 22240A Models WPL 325947 Contact Us For Availability
12
All 2214 & 2234 Models WPL 326561 Contact Us For Availability
12
All 2224 & 2244 Models WPL 326563 Contact Us For Availability
12
Electric Use & Care Guide WPL 326570 Contact Us For Availability
12
Except 2214, 2234 2A Models WPL 326588 Contact Us For Availability
12
Except 2214, 2234 2A Models WPL 326589 Contact Us For Availability
12
Main Top WPL 331376 Contact Us For Availability
12
All 22241A Models WPL 331581 Contact Us For Availability
12
All 2214, 2234 2A Models WPL 333653 Contact Us For Availability
12
All 2214, 2234 2A Models WPL 333654 Contact Us For Availability
12
Lining-Oven Door WPL ARI9683A27 Contact Us For Availability
12
Support Rod-Main Top WPL 320725 Contact Us For Availability
12
Spacer-Main Top (Lt. or Rt.) WPL 326914 Contact Us For Availability
13
22140A, 2240A, 22340A, 22440A WPL 326062 Contact Us For Availability
13
2214, 2224, 2234, 2244 1A & 2A WPL 331590 Contact Us For Availability
13
Bottom-Burner Box WPL ARI9669A60 Contact Us For Availability
13
Bracket-Body Side (Lt. or Rt.) WPL 326516 Contact Us For Availability
14
Cover-Backguard Wire WPL 326122 Contact Us For Availability
14
Clip (2 Req) WPL 285945 Contact Us For Availability
14
White WPL 326055 Contact Us For Availability
14
Coffee WPL 326056 Contact Us For Availability
14
Avocado WPL 326057 Contact Us For Availability
14
Golden Wheat WPL 326058 Contact Us For Availability
14
Almond WPL 326059 Contact Us For Availability
14
Platinum WPL 327939 Contact Us For Availability
14
Toast WPL 327940 Contact Us For Availability
14
Body Side (Lt. or Rt.) WPL ARI9672A12 Contact Us For Availability
15
22140A Models WPL 325943 Contact Us For Availability
15
22141A & 2A Models WPL 331743 Contact Us For Availability
15
Lining-Oven Door WPL ARI9682A60 Contact Us For Availability
15
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
16
All 2214 & 2234 Models WPL 322298 Contact Us For Availability
16
All 2224 & 2244 Models WPL 322300 Contact Us For Availability
16
Glass-Backguard WPL ARI9662A41 Contact Us For Availability
16
White WPL 326530 Contact Us For Availability
16
Almond WPL 326531 Contact Us For Availability
16
Coffee WPL 326532 Contact Us For Availability
16
Avocado WPL 326533 Contact Us For Availability
16
Golden Wheat WPL 326534 Contact Us For Availability
16
Toast WPL 328353 Contact Us For Availability
16
Platinum WPL 328354 Contact Us For Availability
16
Main Top WPL ARI9670A52 Contact Us For Availability
16
Side Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
17
White 2214W &2234W WPL 319963 Contact Us For Availability
17
Coffee 2214C WPL 319964 Contact Us For Availability
17
Avocado 2214A WPL 319965 Contact Us For Availability
17
Golden Wheat 2214H & 2234H WPL 319966 Contact Us For Availability
17
Almond 2214L & 2234L WPL 319967 Contact Us For Availability
17
White 2224W & 2244W WPL 322507 Contact Us For Availability
17
Golden Wheat 2224H & 2244H WPL 322510 Contact Us For Availability
17
Almond 2224L & 2244L WPL 322511 Contact Us For Availability
17
Platinum 2234P & 2244P WPL 328410 Contact Us For Availability
17
Toast 2234T & 2244T WPL 328411 Contact Us For Availability
17
Crosstie-Backguard WPL ARI9663A12 Contact Us For Availability
17
8`` Chrome Bowl (Rt. Front & Lt. Rear) WPL 304969 Contact Us For Availability
17
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
18
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
18
All 2214 & 2234 Models WPL 325503 Contact Us For Availability
18
All 2224 & 2244 Models WPL 325506 Contact Us For Availability
18
8`` Surface Element-Rt. Front & Lt. Rear WPL ARI9671A15 Contact Us For Availability
19
Bezel-Backguard WPL 308007 Contact Us For Availability
19
Terminal Block w/Wire Lead (4 Req) WPL 318960 Contact Us For Availability
19
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
20
Knob-Selector Switch WPL 326948 Contact Us For Availability
20
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
20
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
21
Knob-Infinite Control WPL 326944 Contact Us For Availability
21
Bracket-Terminal Block (4 Req) WPL 318872 Contact Us For Availability
21
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
22
Knob-Thermostat WPL 326954 Contact Us For Availability
22
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
23
Trim Clip WPL 70588 Contact Us For Availability
23
spring-oven door (lt. or rt.) WPL 326962 Contact Us For Availability
24
Lens-Indicator Light (2 Req) WPL 325677 Contact Us For Availability
24
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
25
Space WPL 322302 Contact Us For Availability
25
Right WPL 326012 Contact Us For Availability
25
Left WPL 326013 Contact Us For Availability
25
Hinge-Oven Door WPL ARI9673A19 Contact Us For Availability
26
WPL 322305 WPL 322305 Contact Us For Availability
26
WPL 333049 WPL 333049 Contact Us For Availability
26
WPL ARI9664A29 WPL ARI9664A29 Contact Us For Availability
26
Insulation Retainer-Lower WPL 313281 Contact Us For Availability
27
WPL 109225 WPL 109225 Contact Us For Availability
27
WPL ARI9665A66 WPL ARI9665A66 Contact Us For Availability
27
Vent Tube WPL 326584 Contact Us For Availability
28
WPL 327106 WPL 327106 Contact Us For Availability
28
WPL 327107 WPL 327107 Contact Us For Availability
28
WPL ARI9666A90 WPL ARI9666A90 Contact Us For Availability
28
Thermostat Bulb Clip (2 Req) WPL 115533 Contact Us For Availability
29
Insulation-Service Cord WPL 327242 Contact Us For Availability
30
Junction Block WPL 290105 Contact Us For Availability
31
Shield-Upper Wire WPL 327235 Contact Us For Availability
32
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
33
Insulation-Oven Back & Bottom (1 Piece) WPL 326049 Contact Us For Availability
34
All 22140A & 22240A Models WPL 325771 Contact Us For Availability
34
All 2234 & 2244 Models WPL 325772 Contact Us For Availability
34
All 2214, 2224 1A & 2A Models WPL 331583 Contact Us For Availability
34
Oven Body WPL ARI9674A60 Contact Us For Availability
35
Insulation Retainer-Rt. or Lt. WPL 326768 Contact Us For Availability
36
Button Dart (2 Req) WPL 296097 Contact Us For Availability
37
Washer WPL 21067 Contact Us For Availability
38
All 22340A, 22440A, 22441A WPL 326042 Contact Us For Availability
38
All 22140A & 22240A Models WPL 326046 Contact Us For Availability
38
All 22141A, 2A, 22241 WPL 331584 Contact Us For Availability
38
WPL ARI9675A14 WPL ARI9675A14 Contact Us For Availability
39
WPL 326050 WPL 326050 Contact Us For Availability
40
WPL 296150 WPL 296150 Contact Us For Availability
41
WPL 326073 WPL 326073 Contact Us For Availability
41
WPL 326074 WPL 326074 Contact Us For Availability
41
WPL 326075 WPL 326075 Contact Us For Availability
41
WPL 326076 WPL 326076 Contact Us For Availability
41
WPL 326077 WPL 326077 Contact Us For Availability
41
WPL 328347 WPL 328347 Contact Us For Availability
41
WPL 328355 WPL 328355 Contact Us For Availability
41
WPL ARI9676A83 WPL ARI9676A83 Contact Us For Availability
42
WPL 292240 WPL 292240 Contact Us For Availability
43
WPL 295850 WPL 295850 Contact Us For Availability
44
WPL 325883 WPL 325883 Contact Us For Availability
45
WPL 111257 WPL 111257 Contact Us For Availability
46
WPL 87883 WPL 87883 Contact Us For Availability
47
WPL 326047 WPL 326047 Contact Us For Availability
48
WPL 327875 WPL 327875 Contact Us For Availability
49
WPL 293098 WPL 293098 Contact Us For Availability
49
WPL 331592 WPL 331592 Contact Us For Availability
49
WPL ARI9677A26 WPL ARI9677A26 Contact Us For Availability
50
WPL 327320 WPL 327320 Contact Us For Availability
51
WPL 326360 WPL 326360 Contact Us For Availability
52
WPL 324808 WPL 324808 Contact Us For Availability
53
WPL 102428 WPL 102428 Contact Us For Availability
54
WPL 293099 WPL 293099 Contact Us For Availability
54
WPL 326297 WPL 326297 Contact Us For Availability
54
WPL ARI9678A33 WPL ARI9678A33 Contact Us For Availability
55
WPL 326068 WPL 326068 Contact Us For Availability
57
WPL 319163 WPL 319163 Contact Us For Availability
57
WPL 331867 WPL 331867 Contact Us For Availability
57
WPL ARI9679A71 WPL ARI9679A71 Contact Us For Availability
× ![]()
